arc42 Template¶

About arc42

arc42 is a template for documenting software and system architecture.

Template Version 8.2 EN (AsciiDoc-based), January 2023

Created and maintained by Dr. Peter Hruschka, Dr. Gernot Starke, and contributors. See arc42.org.

Note:
This version contains help and explanations for learning arc42 and understanding its concepts. For documenting your own system, use the plain version.

1. Introduction and Goals¶

Describes the relevant requirements and driving forces for software architects and the development team, including:

• Underlying business goals
• Essential features and functional requirements
• Quality goals for the architecture
• Relevant stakeholders and their expectations

1.1 Requirements Overview¶

Contents:
Short description of functional requirements and driving forces. Reference requirements documents if available.

Motivation:
From the end user's perspective, the system is created or modified to better support business activities or improve quality.

Form:
Short textual description, possibly in tabular use-case format. Reference requirements documents if they exist.

See Introduction and Goals in the arc42 documentation.

1.2 Quality Goals¶

Contents:
List the top three to five quality goals for the architecture that are most important to stakeholders.

Motivation:
Knowing stakeholders' quality goals influences fundamental architectural decisions. Be concrete and avoid buzzwords.

Form:
A table with quality goals and concrete scenarios, ordered by priority.

1.3 Stakeholders¶

Contents:
Overview of system stakeholders (people, roles, organizations) who:

• Should know or be convinced of the architecture
• Work with the architecture or code
• Need the documentation for their work
• Make decisions about the system or its development

Motivation:
Identify all parties involved or affected to avoid surprises later. Stakeholders determine the extent and detail of your work.

Form:
Table with role names, contacts, and expectations.

2. Architecture Constraints¶

Contents:
Any requirement that constrains architectural or development decisions, possibly organization-wide.

Motivation:
Architects must know where they are free to decide and where constraints apply.

Form:
Simple tables of constraints with explanations. Subdivide into technical, organizational, or political constraints as needed.

See Architecture Constraints.

3. Context and Scope¶

Contents:
Defines your system's boundaries and its communication partners (neighboring systems, users). Specifies external interfaces.

Motivation:
Understanding domain and technical interfaces is critical.

Form:
- Context diagrams
- Lists of communication partners and interfaces

See Context and Scope.

3.1 Business Context¶

Contents:
List all communication partners (users, IT systems, etc.) with explanations of domain-specific inputs/outputs or interfaces.

Motivation:
Stakeholders should understand data exchanged with the system's environment.

Form:
Diagrams or tables showing the system as a black box and its domain interfaces.

3.2 Technical Context¶

Contents:
Technical interfaces (channels, transmission media) linking your system to its environment. Map domain-specific I/O to channels.

Motivation:
Technical interfaces influence architectural decisions.

Form:
E.g., UML deployment diagram and mapping table.

4. Solution Strategy¶

Contents:
Summary of fundamental decisions and solution strategies shaping the architecture, including:

• Technology choices
• Top-level decomposition (patterns)
• Approaches to key quality goals
• Relevant organizational decisions

Motivation:
These decisions are the foundation for detailed design and implementation.

Form:
Keep explanations short. Motivate decisions based on problem statement, quality goals, and constraints.

See Solution Strategy.

5. Building Block View¶

Content:
Shows the static decomposition of the system into building blocks (modules, components, subsystems, etc.) and their dependencies.

Motivation:
Maintain an overview of source code structure for communication and abstraction.

Form:
Hierarchical collection of black boxes and white boxes.

See Building Block View.

5.1 Whitebox Overall System¶

Describe the decomposition of the overall system:

• Overview diagram
• Motivation for decomposition
• Black box descriptions of contained building blocks (table or list)
• (Optional) Important interfaces

Motivation:

Contained Building Blocks:

Important Interfaces:

Example Table:

¶

• Purpose/Responsibility
• Interface(s)
• (Optional) Quality/Performance characteristics
• (Optional) Directory/File location
• (Optional) Fulfilled requirements
• (Optional) Open issues/problems/risks

¶

¶

¶

...

¶

5.2 Level 2¶

Specify the inner structure of selected building blocks from level 1 as white boxes.

White Box ¶

White Box ¶

...

White Box ¶

5.3 Level 3¶

Specify the inner structure of selected building blocks from level 2 as white boxes.

White Box <building block x.1>¶

White Box <building block x.2>¶

White Box <building block y.1>¶

6. Runtime View¶

Contents:
Describes concrete behavior and interactions of building blocks in scenarios such as:

• Important use cases or features
• Interactions at critical external interfaces
• Operation and administration (start-up, shutdown)
• Error and exception scenarios

Motivation:
Understand how building blocks perform and communicate at runtime.

Form:
- Numbered steps
- Activity diagrams
- Sequence diagrams
- BPMN/EPCs
- State machines

See Runtime View.

¶

¶

...

¶

7. Deployment View¶

Content:
Describes:

1. Technical infrastructure for system execution (locations, environments, computers, processors, channels, etc.)
2. Mapping of software building blocks to infrastructure elements

Motivation:
Infrastructure influences the system and cross-cutting concepts.

Form:
- UML deployment diagrams
- Other diagrams showing nodes and channels

See Deployment View.

7.1 Infrastructure Level 1¶

Describe:

• Distribution to locations, environments, computers, etc.
• Justifications for deployment structure
• Quality/performance features
• Mapping of software artifacts to infrastructure

Motivation:

Quality/Performance Features:

Mapping of Building Blocks to Infrastructure:

7.2 Infrastructure Level 2¶

Include internal structure of selected infrastructure elements from level 1.

¶

¶

...

¶

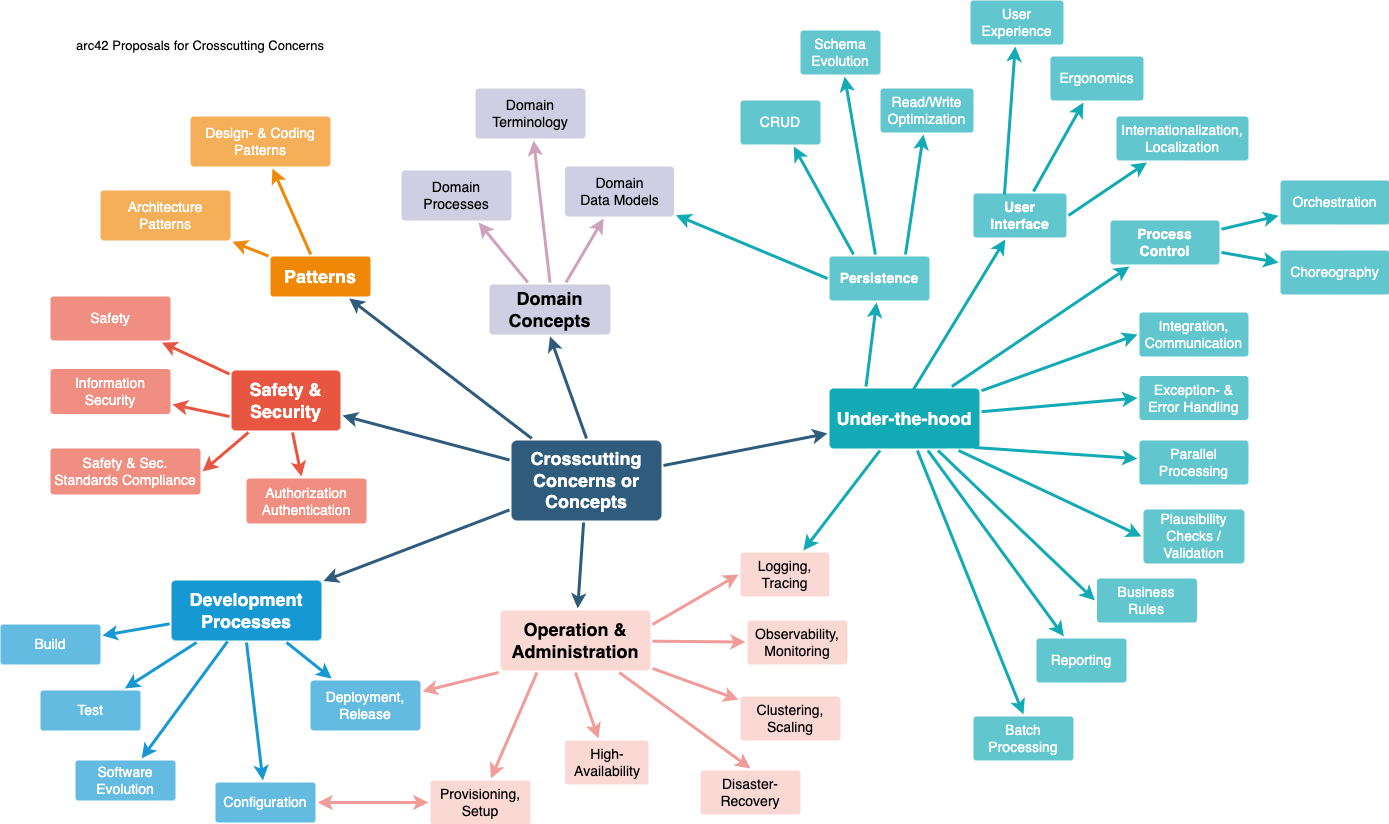

8. Cross-cutting Concepts¶

Content:
Describes overall regulations and solution ideas relevant in multiple parts of the system, such as:

• Domain models
• Architecture/design patterns
• Technology usage rules
• Principal technical decisions
• Implementation rules

Motivation:
Concepts ensure consistency and integrity across the architecture.

Form:
- Concept papers
- Model excerpts or scenarios
- Sample implementations
- References to standard frameworks

Structure (optional):

• Domain concepts
• User Experience (UX) concepts
• Safety and security concepts
• Architecture/design patterns
• "Under-the-hood"
• Development concepts
• Operational concepts

See Concepts.

¶

¶

...

¶

9. Architecture Decisions¶

Contents:
Document important, expensive, large-scale, or risky architecture decisions and their rationales.

Motivation:
Stakeholders should be able to understand and retrace decisions.

Form:
- ADRs (Documenting Architecture Decisions)
- List or table, ordered by importance
- Separate sections per decision

See Architecture Decisions.

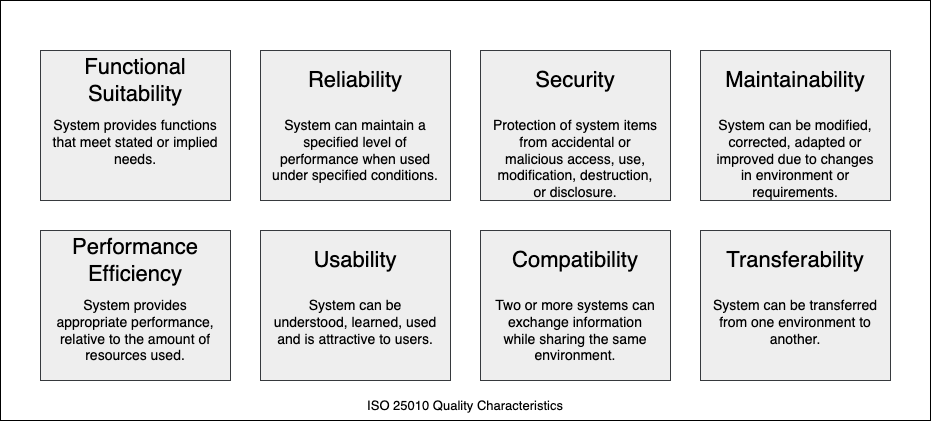

10. Quality Requirements¶

Content:
All quality requirements as a quality tree with scenarios. Most important ones are in section 1.2.

Motivation:
Quality requirements influence architectural decisions. Know what is important for each stakeholder.

See Quality Requirements.

10.1 Quality Tree¶

Content:
Quality tree (as in ATAM) with quality/evaluation scenarios as leaves.

Motivation:
Tree structure with priorities provides an overview for many quality requirements.

Form:
- Tree-like refinement of "quality"
- Mind map with quality categories as branches

Include links to scenarios in the next section.

10.2 Quality Scenarios¶

Contents:
Concrete scenarios for quality requirements.

• Usage scenarios: System's runtime reaction to stimuli (e.g., performance)
• Change scenarios: Modifications to the system or environment

Motivation:
Scenarios make quality requirements concrete and measurable.

Form:
Tabular or free-form text.

11. Risks and Technical Debts¶

Contents:
List of identified technical risks or debts, ordered by priority.

Motivation:
Systematic detection and evaluation of risks and technical debts is essential for management.

Form:
List of risks/debts, possibly with suggested mitigation measures.

See Risks and Technical Debt.

12. Glossary¶

Contents:
Most important domain and technical terms used by stakeholders.

Motivation:
Define terms clearly to ensure shared understanding and avoid synonyms/homonyms.

Form:
Table with columns for Term and Definition (add translations if needed).

See Glossary.
